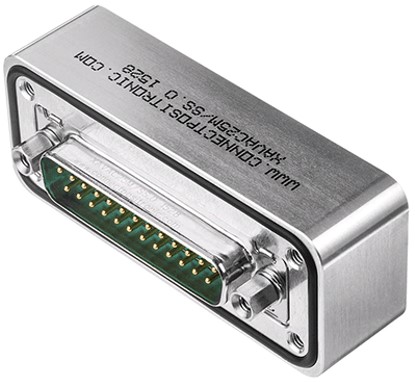

            XAVAC® Series Hermetically Sealed Connectors
                    Amphenol Positronic’s XAVAC connectors can withstand extreme temperature variations and resist damaging vibration


Amphenol Positronic’s XAVAC series hermetically sealed connectors with D-subminiature feedthrough are ideal for space or industrial vacuum applications. They utilize precision machined contacts for strength and durability. They withstand extreme temperature variations, from approximately -40°C to +85°C, and resist damaging vibration. These connectors have a superior helium leak rate. The materials and finishes, as well as the technical characteristics of the XAVAC series connectors, meet or exceed the performance requirements of MIL-DTL-24308 and NASA Goddard S-311 and SPACE-D32 specifications. Mixed density is available.

Features

Fixed contacts: Size 8, size 20, and size 22
DAP or polyester insulator, brass or stainless-steel shell
Gold flash contact plating
Contact current rating: 10 A to 40 A
Flammability rating: UL 94V-3

Applications

Aerospace (satellites, power conditioning units, vacuum plates)
X-ray testing (non-medical, electrical components examinations)
Scientific instruments (electron microscopes)
