Bourns Inc.

Ultra-High-Speed Interface Protection - CD0201-T2.0LC

Bourns’ TVS diode is ideal for ultra-high-speed ports such as USB4®, Thunderbolt™, and 10GbE interface protection designs

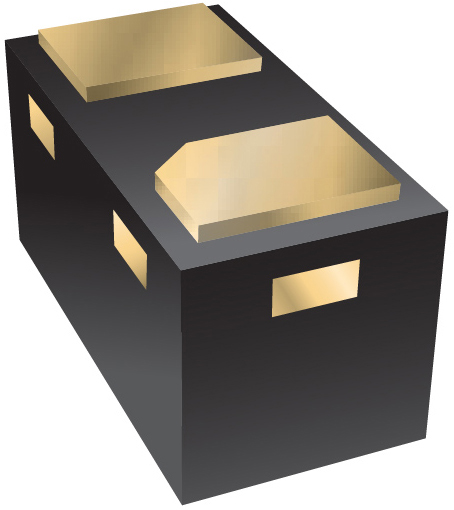

Image of Bourns' Ultra-High-Speed Interface Protection - CD0201-T2.0LCBourns’ CD0201-T2.0LC ultra-low capacitance TVS diode is designed to provide effective ESD protection in ultra-high-speed communication port and sensitive transceiver applications. This diode comes in a 0201 package (0.6 mm x 0.3 mm x 0.3 mm), which meets the critical requirement for ultra-high-speed ports such as USB4, Thunderbolt, and 10GbE interface protection designs with an ultra-low capacitance of only 0.18 pF.

Features
  • Bidirectional 2 V TVS diode
  • Low capacitance: <0.2 pF
  • High ESD protection
  • Fits 0201 footprint
Applications
  • 2.5G/5G/10GbE
  • Thunderbolt
  • USB4/USB 3.1/USB 3.0
  • DisplayPort™

Ultra-High-Speed Interface Protection - CD0201-T2.0LC

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
TVS DIODE 2VWM 4VC 0201CD0201-T2.0LCTVS DIODE 2VWM 4VC 020185336 - Immediate$0.25View Details
Published: 2022-05-11
