Hirose wire-to-board, wire-to-wire power connectors

EnerBee - Your best choice for cabled power connectors

High-performance wire-to-board and wire-to-wire power connectors combining compact size with high-current (up to 65A) & high-voltage (up to 630V AC/DC) capability. Available in multiple different form factors depending upon the use case with center-lock design and built-in positive lock ensuring secure mating, space savings, and assembly efficiency for industrial power systems and select automotive applications.

Enerbee brochure cover
  • DF33C
  • DF63
  • DF63W
  • DF63F
  • DF22
  • DF60
DF33C Series

DF33C Series, Wire-to-Board for Internal Power Source

  • 3.3 mm pitch
  • Pin Count: 2 to 6 for single row, up to 12 for double row
  • Current rating: 4 A to 5 A depends on configuration and wire size
  • Wire size: 20 – 22 AWG
  • Secure lock mechanism
  • Incorrect mating prevention
  • Supports resin sealing

DF63 Series

DF63 Small Wire-to-Board Connector up to 15 Amps

  • Pitch: 3.96 mm
  • Variations: 1 to 6 positions in straight, right angle, and in-line
  • 15 Amps with #16 AWG
  • Applicable cable: #16 and 18 AWG
  • High reliability with multi-contact point
  • Secure mating and clear tactile click
  • Accepts resin sealing up to 5 mm height
  • Will be UL and TÜV certified

DF63W Series

DF63W

  • Max current of 14A
  • Compact shape designed for wiring through narrow areas
  • IP67 Rated
  • Simplified wire insertion
  • Positive lock structure

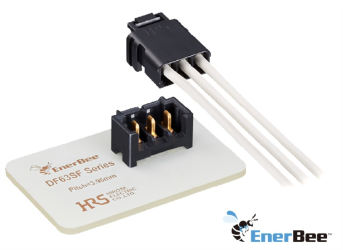

DF63W Series

DF63SF

  • Rated for up to 12A
  • The small vertical- mating design allows for easy assembly
  • Secure Mating with a Clear Tactile Click
  • Molded Lance Design
  • THR Mounting

DF22 Series

DF22 Series, Wire-to-Board

  • 7.92 mm contact pitch
  • Varieties: 1-5 pos. right angle and straight type
  • Current capacity: Max. 30 A with 10 AWG cable
  • 4-point contact structure
  • Different keying types and colored housings (red, white, black)

DF60 Series

DF60 Series, Wire-to-Board for Power Supply

  • 10.16 mm pitch
  • 45 A high current capacity with AWG#8, 1 position
  • Accepts AWG#8 to 12 cables size with 1 to 6 positions
  • 5-point contact with independent contact springs
  • Connection style varieties: straight, right-angle and in-line
  • Keying variations available
  • UL and TÜV certified

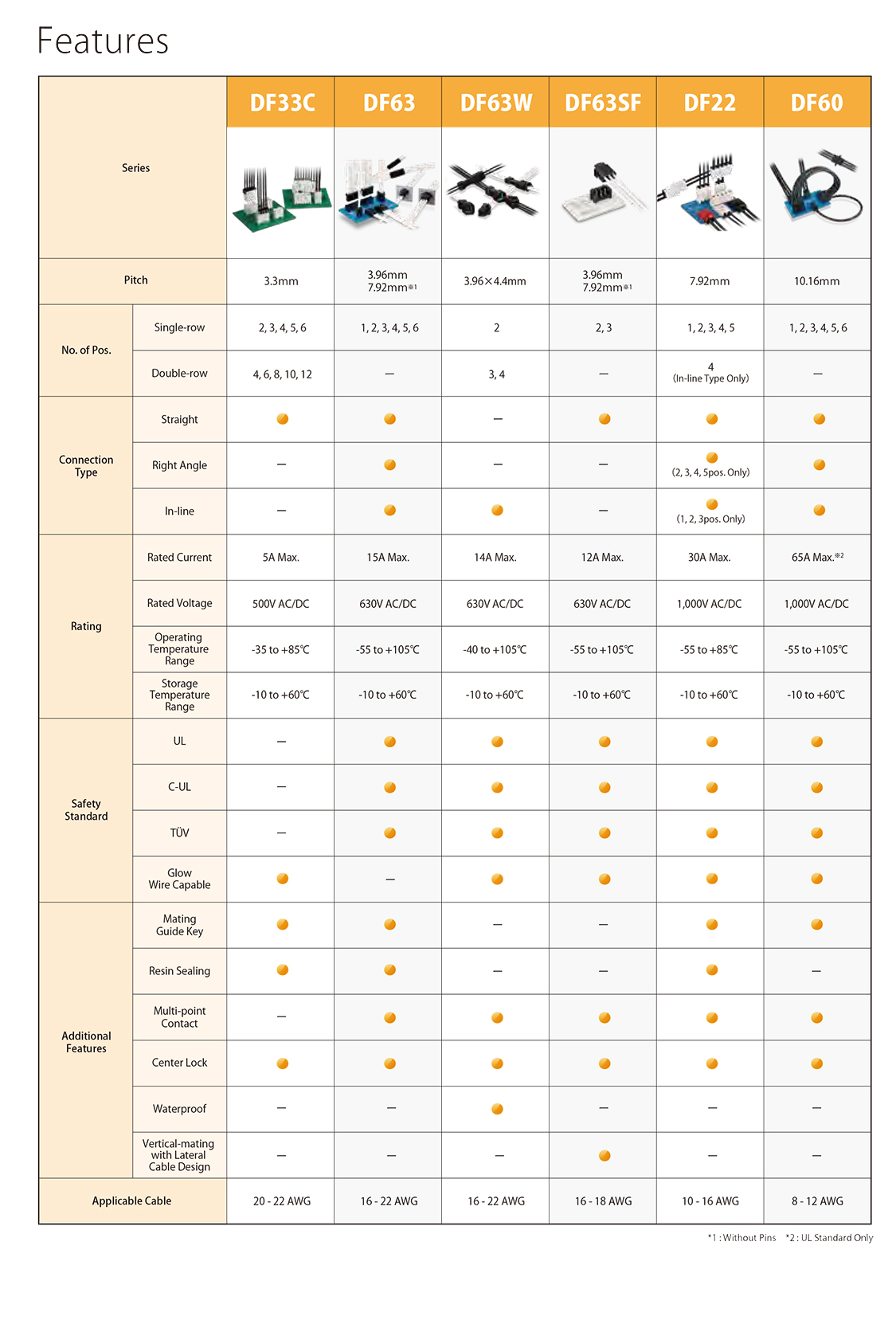

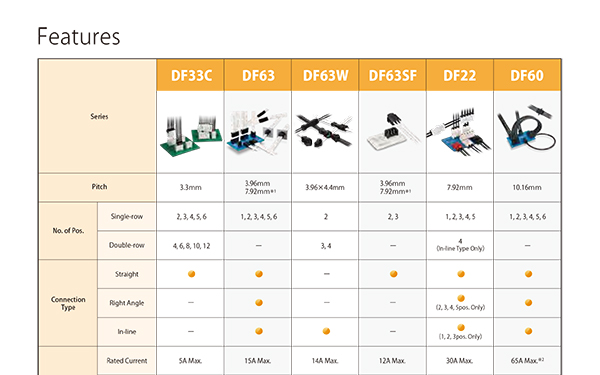

EnerBee features chart

View chart
