CAB006A12GM3 Half-Bridge Module

Wolfspeed’s half-bridge module provides an excellent solution for fast design implementation, scalability, and low assembly overhead

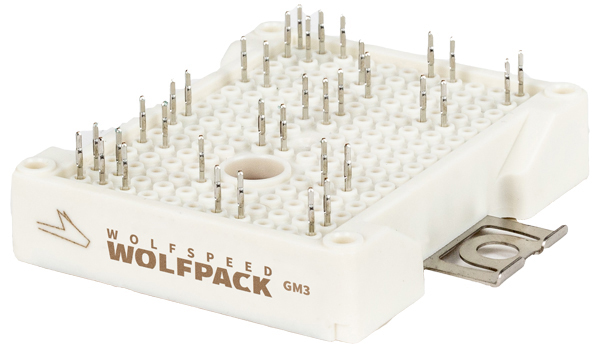

Image of Wolfspeed's CAB006A12GM3 Half-Bridge ModuleWolfspeed’s CAB006A12GM3 all-silicon carbide half-bridge baseplate-less module meets the requirements for medium power applications and provides solutions across the power electronics continuum. Wolfspeed WolfPACK™ modules are a great choice for designers who want to increase efficiency and power density in a compact, industry standard footprint. The CAB006A12GM3 module provides an excellent solution for fast design implementation, scalability, and lower assembly overhead.

Features
  • Ultra-low loss
  • High-frequency operation
  • VDS: 1200 V
  • RDS(ON): 6 mΩ
  • Zero turn-off tail current from MOSFET
  • Normally-off, fail-safe device operation
  • Aluminum nitride ceramic substrate
Applications
  • Electric vehicle (EV) chargers
  • Solar
  • High efficiency converters/inverters
  • Motors and traction drives
  • Smart-grids/grid-tied distributed generation

CAB006A12GM3 Half-Bridge Module

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
MOSFET 2N-CH 1200V 200ACAB006A12GM3MOSFET 2N-CH 1200V 200A5 - Immediate$194.34View Details
Published: 2021-12-14
