Block Diagram

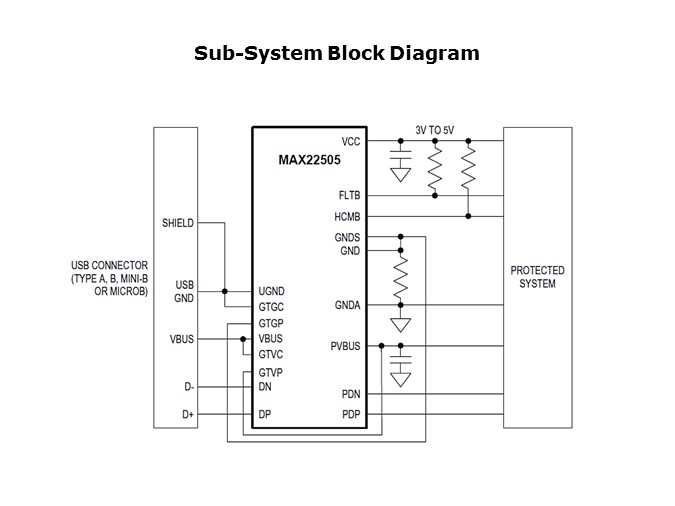

This schematic shows how the MAX22505 can be used in an industrial application. It shields the protected system on the right from faults that could be present on the USB connector on the left. The MAX22505 has fault protection on VBUS GND as well as both D-plus and D-minus lines.
