SAM9M10-Slide3

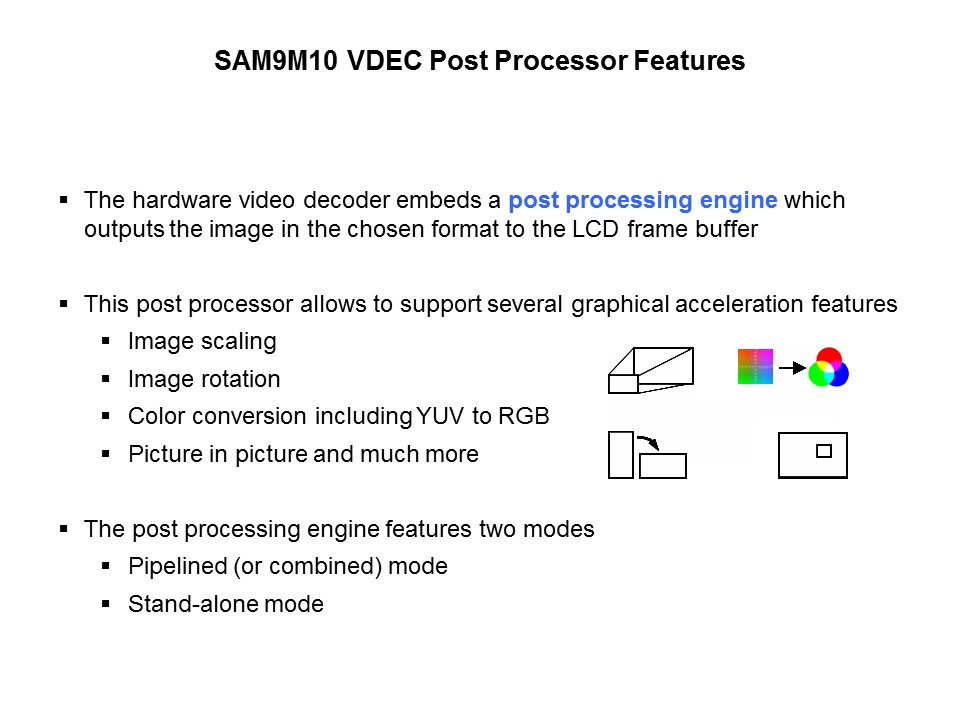

The SAM9M10 post processing engine provides support to several graphical acceleration features such as image scaling, image rotation, color conversion, picture in picture and much more that will be described in this module. Shown on this slide are the two modes of operation of this post processing engine, the pipeline mode, also called combined mode, and the stand alone mode. These modes will be defined in more detail on the following slides.
