HighFreq-CMOS-Slide10

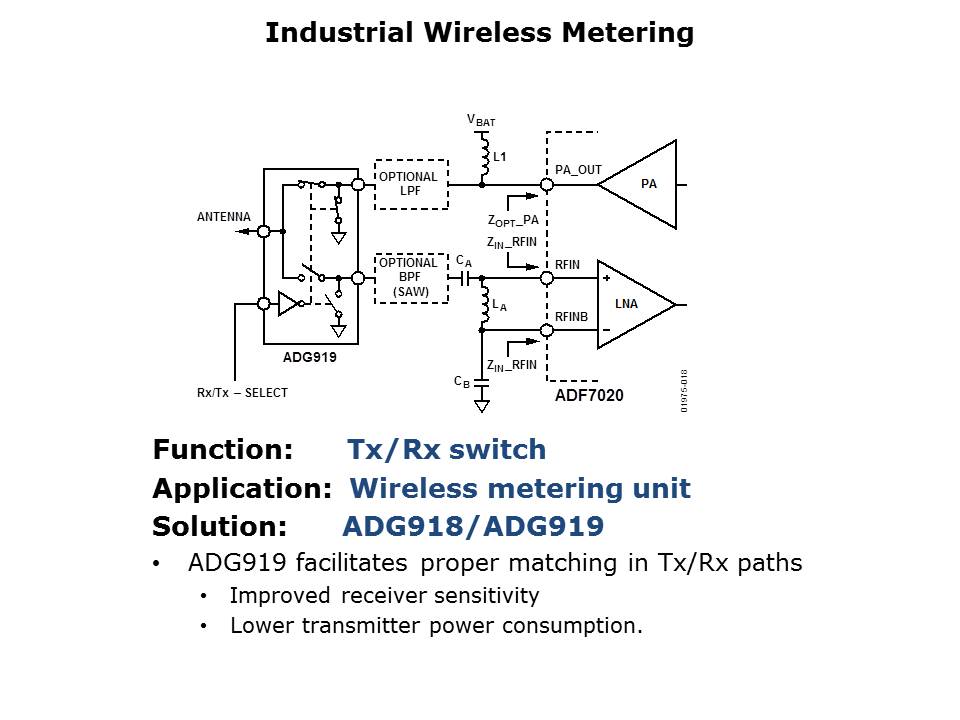

The ADG9xx parts are also suitable for wireless metering systems, providing the required isolation between transmit and receive signals. It also facilitates proper matching between the LNA (low noise amplifier) and the PA (power amplifier). The good insertion loss performance and isolation make it a good solution up to 1GHz.

PTM Published on: 2009-04-07
