HighFreq-CMOS-Slide8

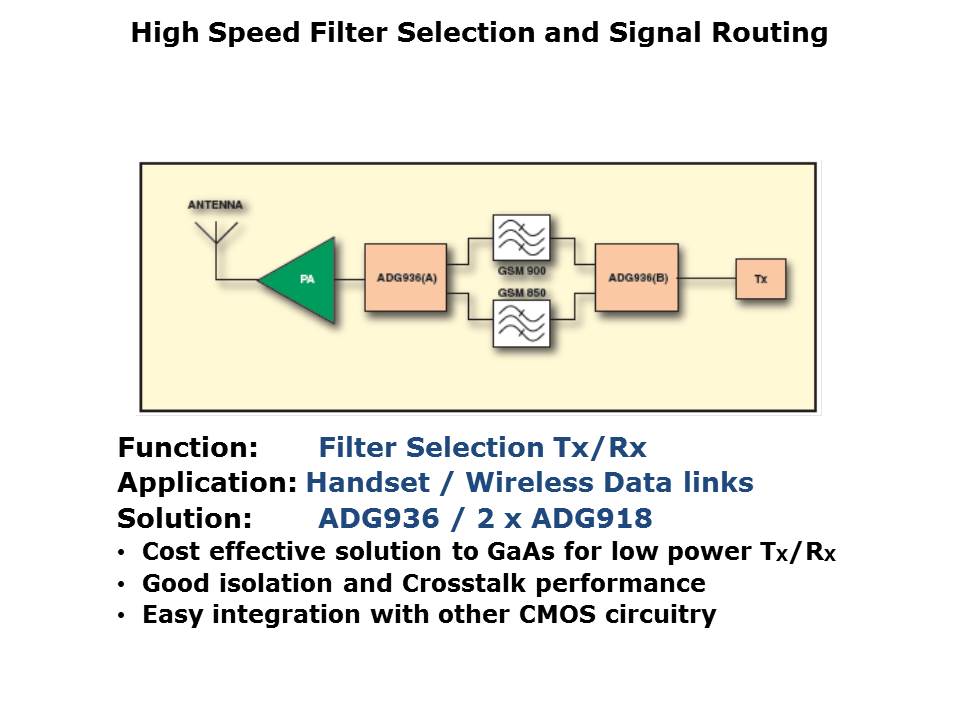

The ADG9xx parts are suitable for high-speed filter selection and data routing. For example, the ADG904 can be used as a 4:1 demultiplexer to switch high-frequency signals between different filters and also to multiplex the signal to the output. For differential filter selection and data routing, the ADG936 dual SPDT (single-pole, double-throw) switch is an ideal solution. Data switching in modem cards for point-to-point wireless systems, such as microwave radio links for military and avionic applications, requires the high-frequency performance offered by the ADG9xx family of parts. The easy integration and good RF performance make the ADG9xx a cost effective solution.

PTM Published on: 2009-04-07
