MOS8-Slide8

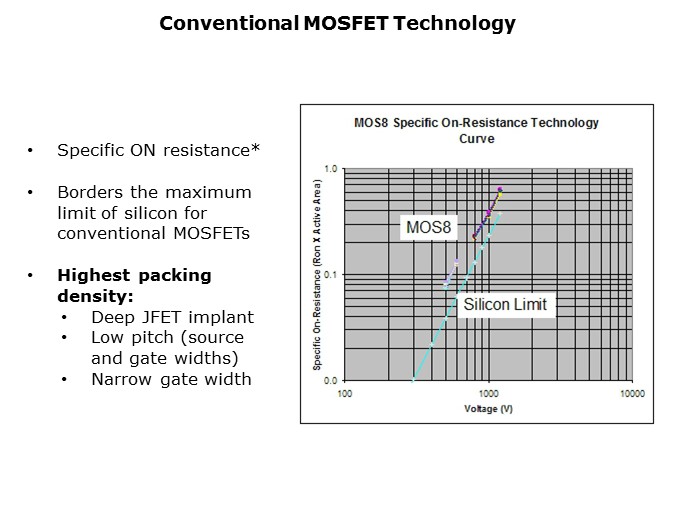

This graph shows that MOS8 is approaching the specific ON resistance of the silicon limit dealing with conventional planar MOSFET technology. MOS8 has a high packing density due to a deeper than normal JFET implant, low pitch, and narrow gate widths.

PTM Published on: 2010-10-16
