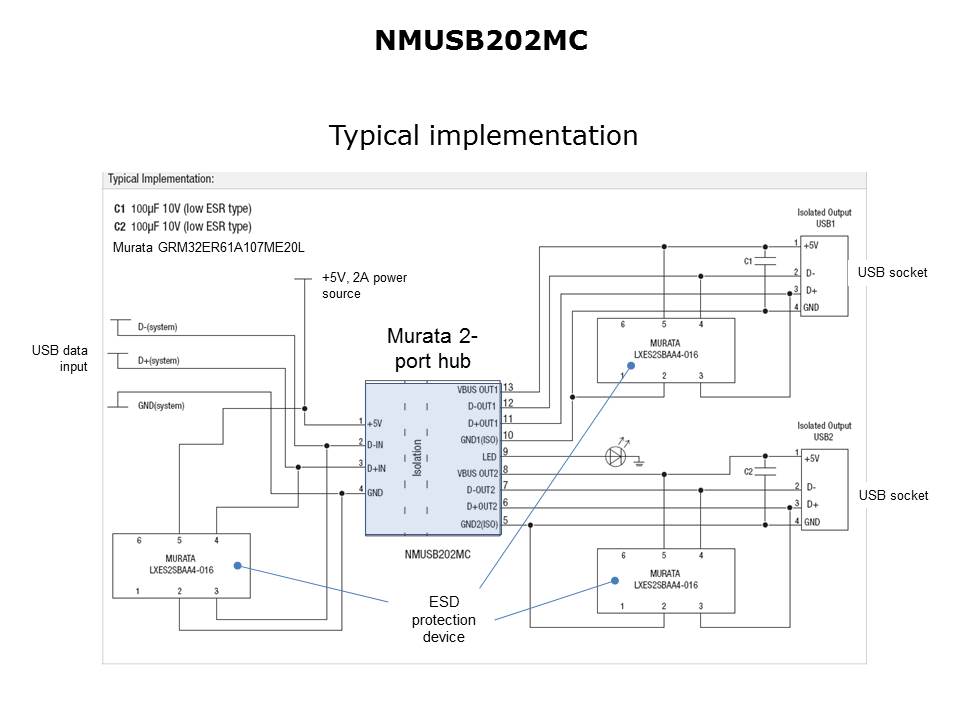

The diagram on this slide shows a typical application implementation of the NMUSB202MC using Murata transient suppressors from the LXE series to provide ESD protection for the USB data lines. Minimal extra external components are needed to create a full-function USB isolated interface.
