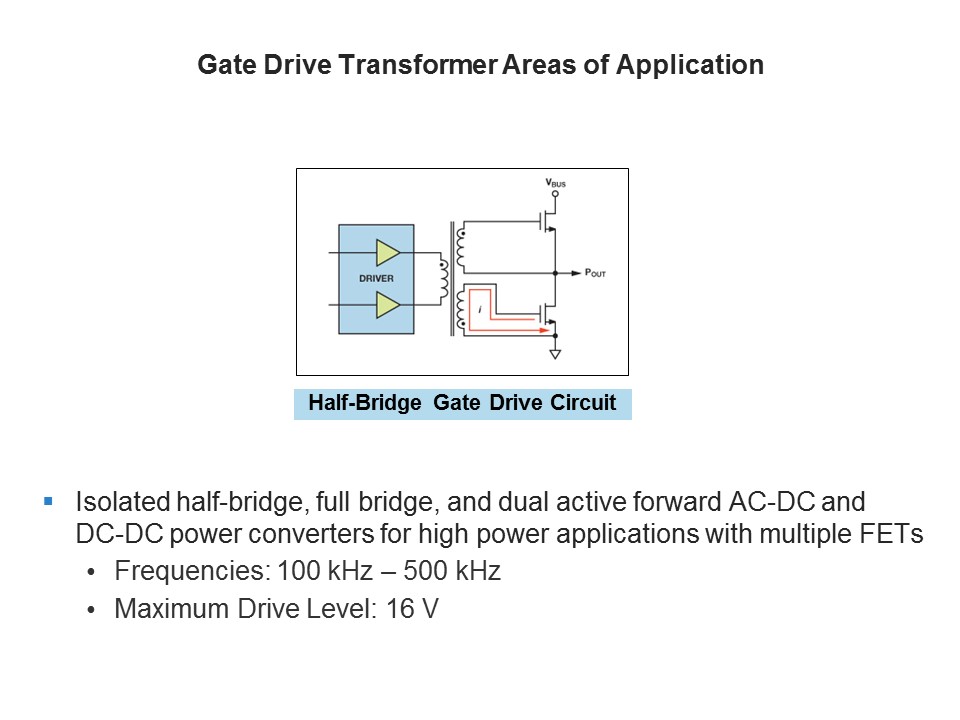

Power switch mode applications for the planar gate drive transformer series include isolated half-bridge converters, full-bridge and dual active forward AC-DC and DC-DC power converters for high power applications with multiple FETs. Recommended switching frequencies range is from 100 kHz to 500 kHz and the recommended maximum drive level is 16 V.
